Pharmaceutical Carton with Braille + CutContour

Adds Grade-1 Braille, ISO dimension annotations, and an overprinting CutContour separation to a supplied one-up medicine-carton flat.

Ideal input: One completed pharmaceutical carton flat with correct TrimBox; structural crease paths stay in the source artwork and text must be approved by regulatory/packaging teams

Open this template in PDF PressBrowse all templates
pharmaceuticalBraillecartonaccessible packagingCutContourdimensionsdie cut

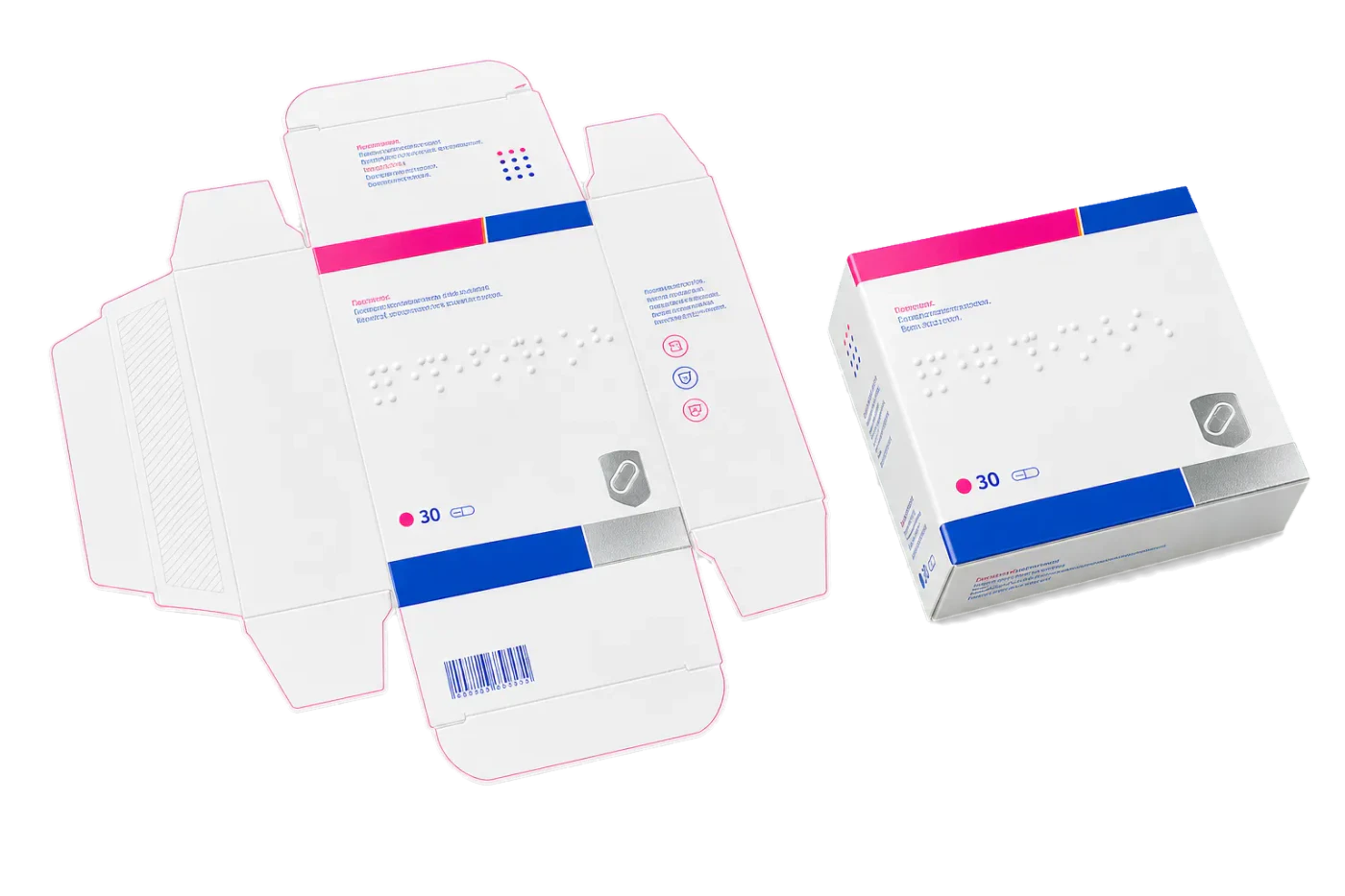

Pharmaceutical Carton with Braille + CutContour finished print product beside its press-ready imposed sheet
A realistic pharmaceutical carton with braille + cutcontour production example showing the imposed sheet and finished printed result.

Template specs

ComplexityProduction pipeline
Steps3
CategoryPackaging

How the Pharmaceutical Carton with Braille + CutContour layout is built

  1. 1Braille

    Transcribes the representative product line as uncontracted Grade-1 Braille using 4.25 pt Marburg Medium dots placed 10 mm inside the trim reference.

  2. 2Dimensions

    Adds ISO 19593-1 dimension processing-step annotations for the supplied flat so structural review can confirm the exact trim width and height in millimetres.

  3. 3Die Lines

    Creates a named overprinting CutContour hairline around the final TrimBox as the last operation, preserving the separation for the converting workflow.
