Packaging template

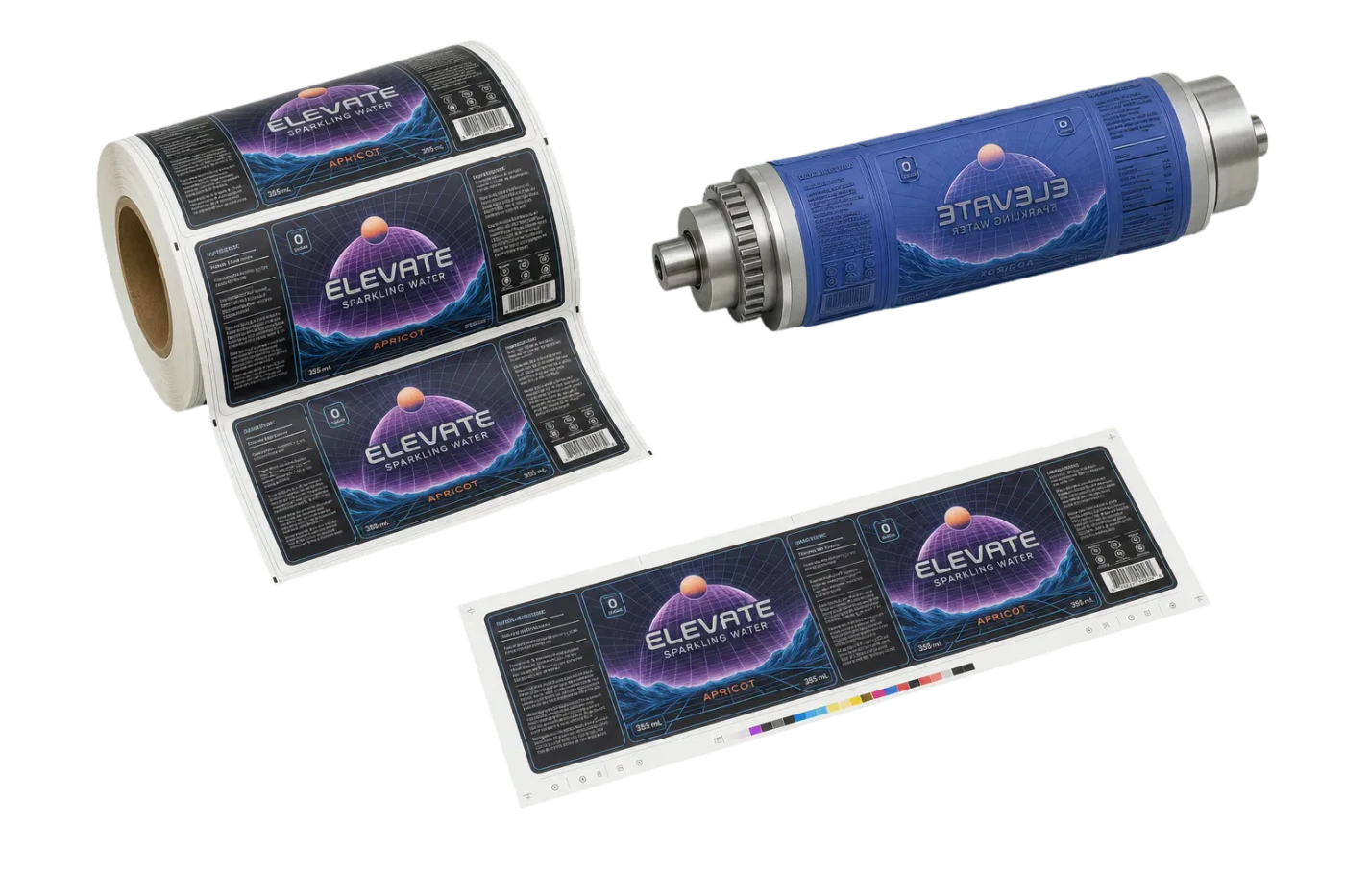

Flexo Label Roll with Cylinder Distortion
Compensates label art for plate/cylinder elongation, then nests repeated kiss-cut labels across a 116.5 mm web.
Ideal input: One 3×2" pressure-sensitive label page with 3 mm bleed; confirm cylinder, plate, and tape dimensions against the press tooling
Template specs
| Complexity | Production pipeline |
|---|---|
| Steps | 3 |
| Category | Packaging |
How the Flexo Label Roll with Cylinder Distortion layout is built
Applies circumferential flexographic compensation using representative 150 mm cylinder, 1.7 mm plate, and 0.508 mm tape values that must be confirmed for the mounted plate package.
Packs twelve compensated labels along a 116.5 mm web with 3 mm inter-label spacing and two allowed orientations for economical roll production.
Adds a CMYK-compatible Kiss-Cut finishing layer after nesting so the cutter reference remains present on the final web layout.
